CFRTP/FRTP (Carbon Fiber Reinforce Thermoplastic) Advantage

• Reformable
• Shorter Cycle Time
• Smooth & Good Surface Quality without any putty material.
• Recyclable, GREEN Material
• Tough and High Impact Resistance
• Compatible with other process. i.e. Over-molding, Welding, Stitching etc.

Resin options we are using：

• Polypropylene ( PP )
• Polycarbonate ( PC )
• Polyamide ( Nylon, PA )
• Thermoplastic Polyurethanes ( TPU )
• Polysulfone ( PSU )
• High Temperature Plastic ( PPS, PEEK…. Developing )

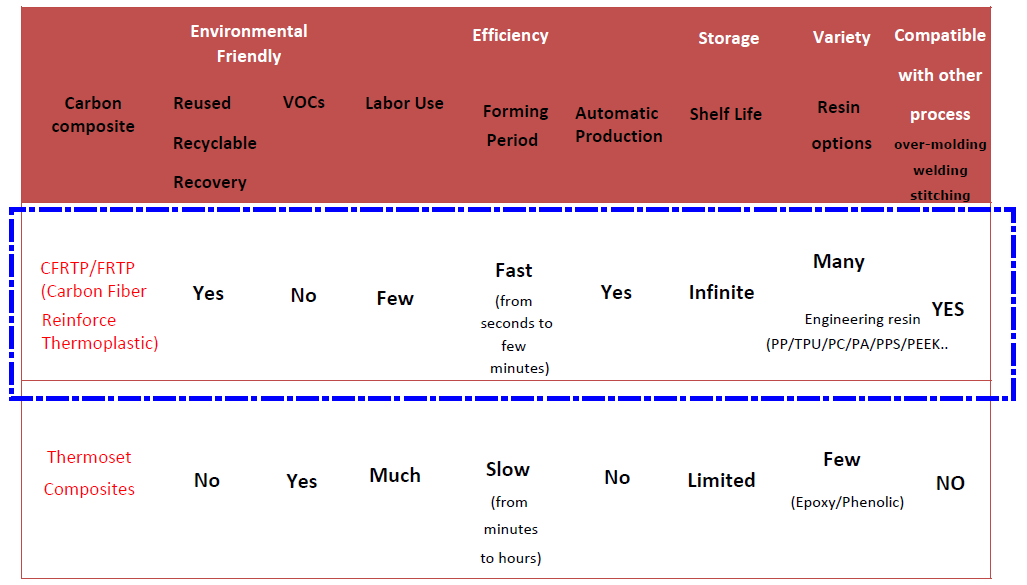

CFRTP/FRTP(Carbon Fiber Reinforce Thermoplastics) vs. Thermoset Composite

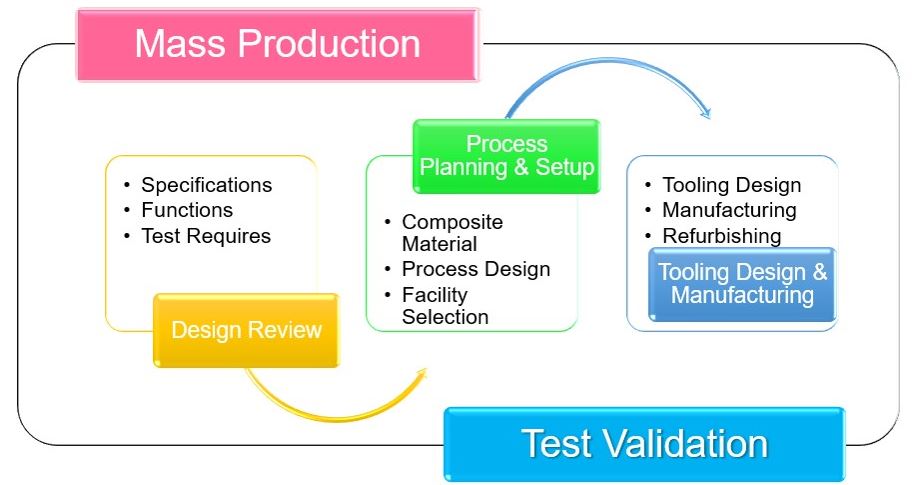

Design Review

Received CAD file from Customer :

• Feasibility Assessment
• DFM Review (Design for Manufacturing)
• Final 3D printed sample review & discussion
• Drawing Frozen
• Tooling Kick-off

Process Planning & Setup

According to different products geometry, Euro-ACE would select the most effective process to produce.

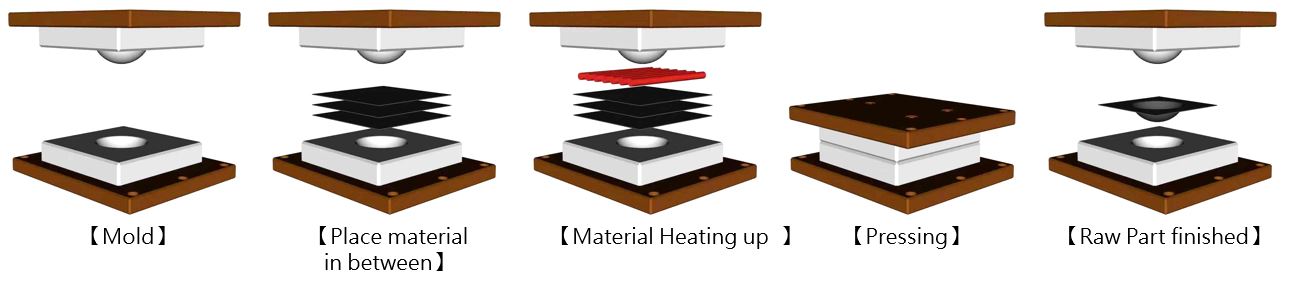

Here is one of the process examples:
Euro-ACE Equipment：

• High Speed Cutting Machine for Prepreg and Sheet
• Hot Forming Machines
• Robots / CNC Trimming
• 5-Axis Tape Winding Machine

Tooling Design & Manufacturing in-House

To keep developments in confidential, Euro-ACE designs and manufactures tooling in-house. Moreover, the tooling lead time can be shortened and well controlled.

Test & Validation

EURO-ACE designs validation fixture in accordance with customer’s product specifications and requirements.

• Universal Testing Machine
• Hardness Tester
• Helmet Testing Machine etc.
